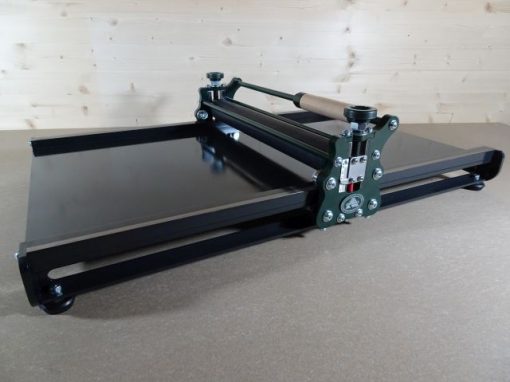

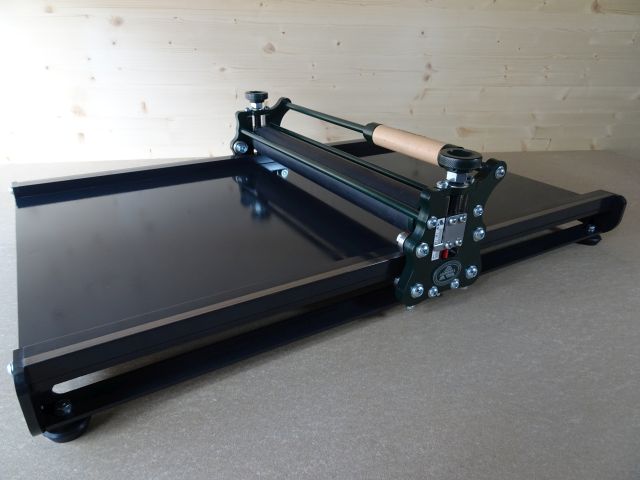

Proofing Press SPT A2

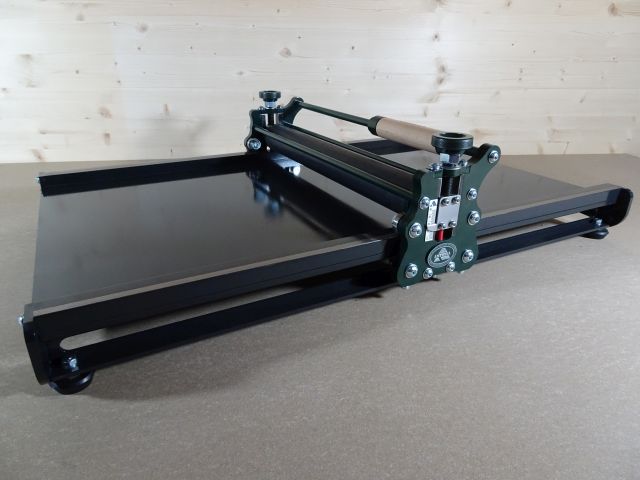

The Proofing Press SPT A2 is a very professional, versatile and handy proofing press which has a roller adjustable in height (minimum height is 20mm and maximum is 35mm approximately), painted in a British green tone. Being adjustable in height allows you to use several types heights in a easier way. Robustness, softness and professional results together in the same press.

All our Proofing Press models have a monorail system in the inferior side, guided by four bearings, which gives them an incredible precision and maximum softness. Our Proofing Presses have been designed to have a vintage look, as we hightly believe that this kind of machines deserve to not only be functional but attractive at sight, which invites to be creative and allows the press to be part of your atelier or working area. It allows them to have personality.

With the aim of maintaining the optimal state of the Proofing Press, we have created an specific oil for the press’ guides, which will allow you to maintain your press as perfect as the first day.

Consultar
Category:

Description

Specifications and technical details:

  • General sizes: 93x64x23 cm.
  • Total working area: 50×90 cm.
  • Bed plate printing area: 50×68 cm.
  • Roller adjustable in height (between 20mm and 35mm approx.).

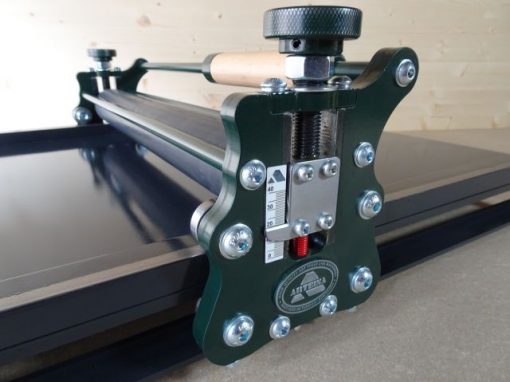

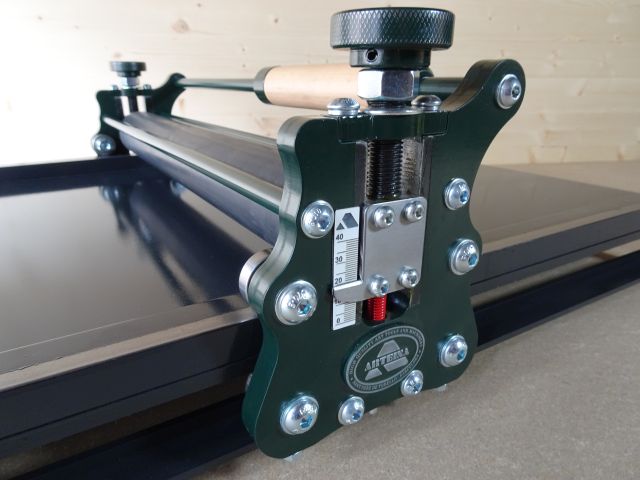

  • Upper roller height measurement system using graduated rulers.
  • Springs to help upper roller recovery.
  • Fixed bed plate at 20mm.
  • M16 Steel Spindles.
  • Pressure locking system.

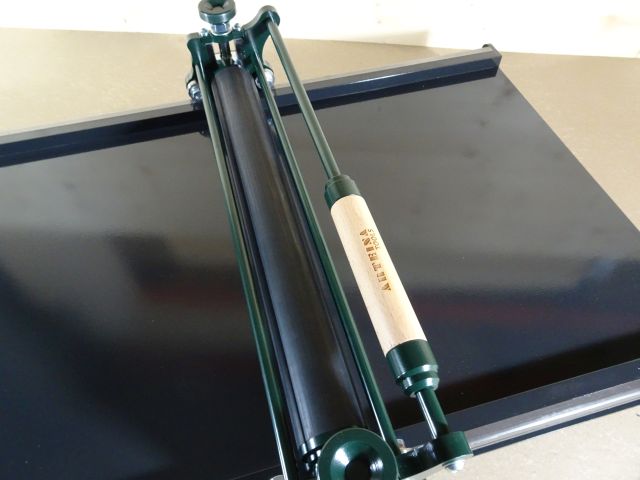

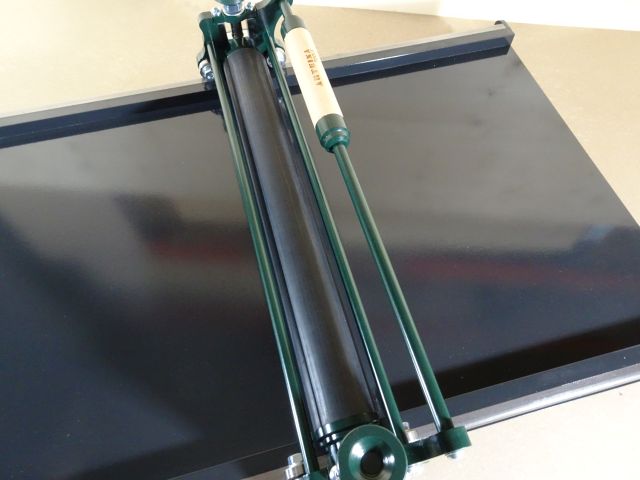

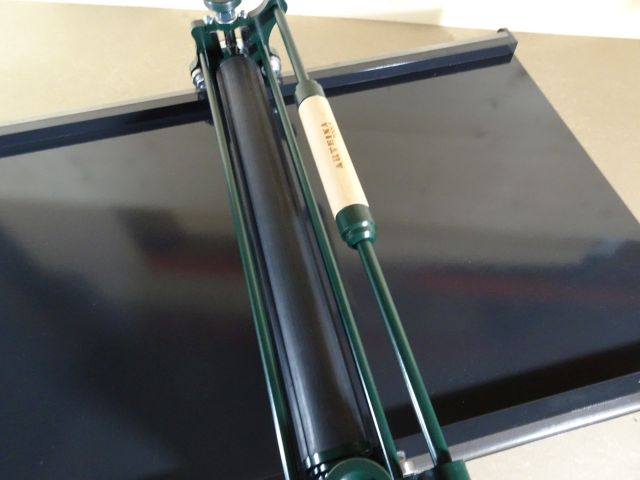

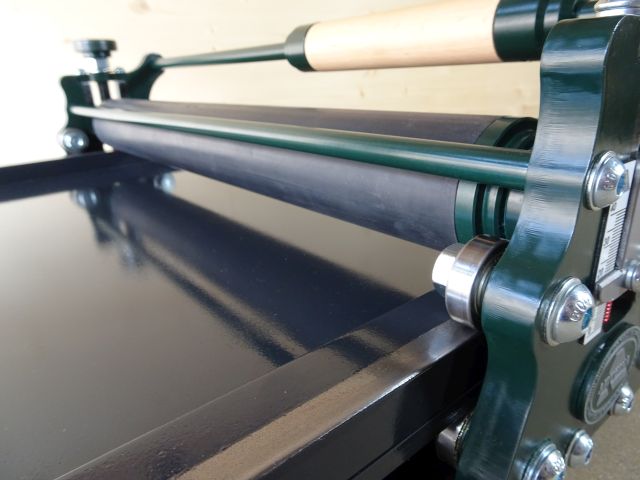

  • Solid steel roller with a 2,5 mm coating.
  • Roller assembled on lubricated ZZ bearings.
  • Guided by a lower monorail.

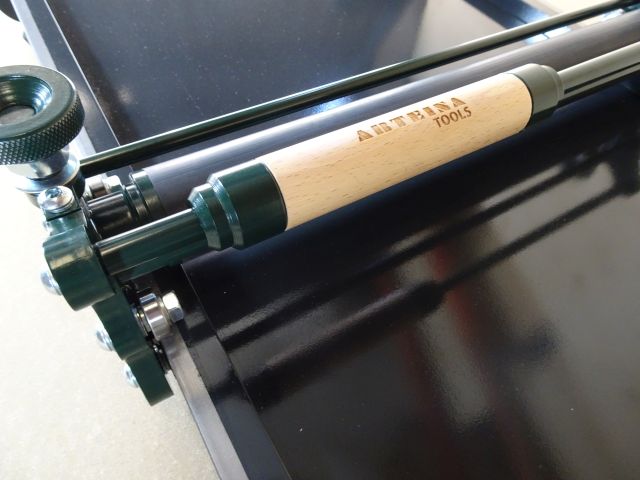

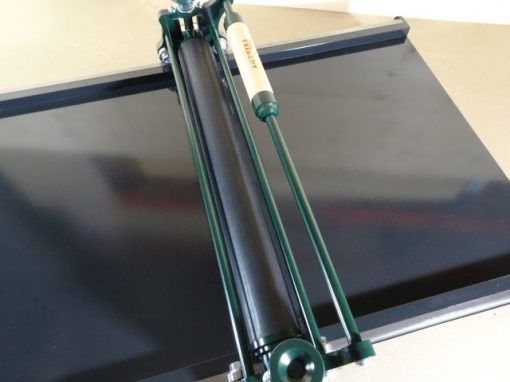

  • Wooden handle placed in the center.
  • Silent-blocks to facilitate anchoring on the table when working.
  • Weight: 80kg approximately.
